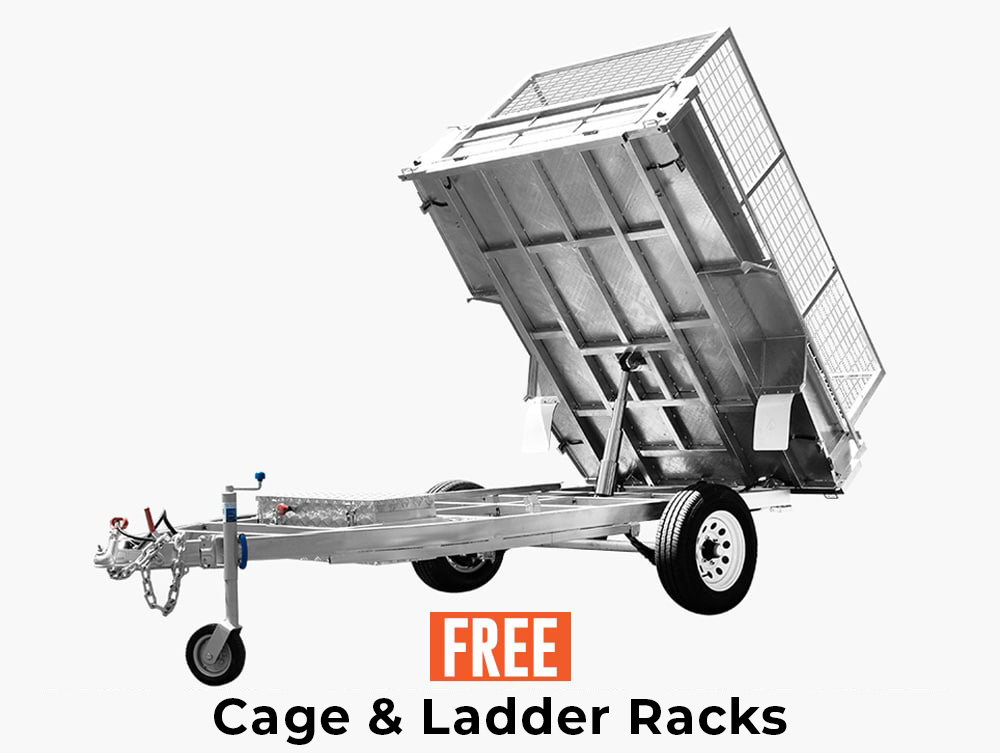

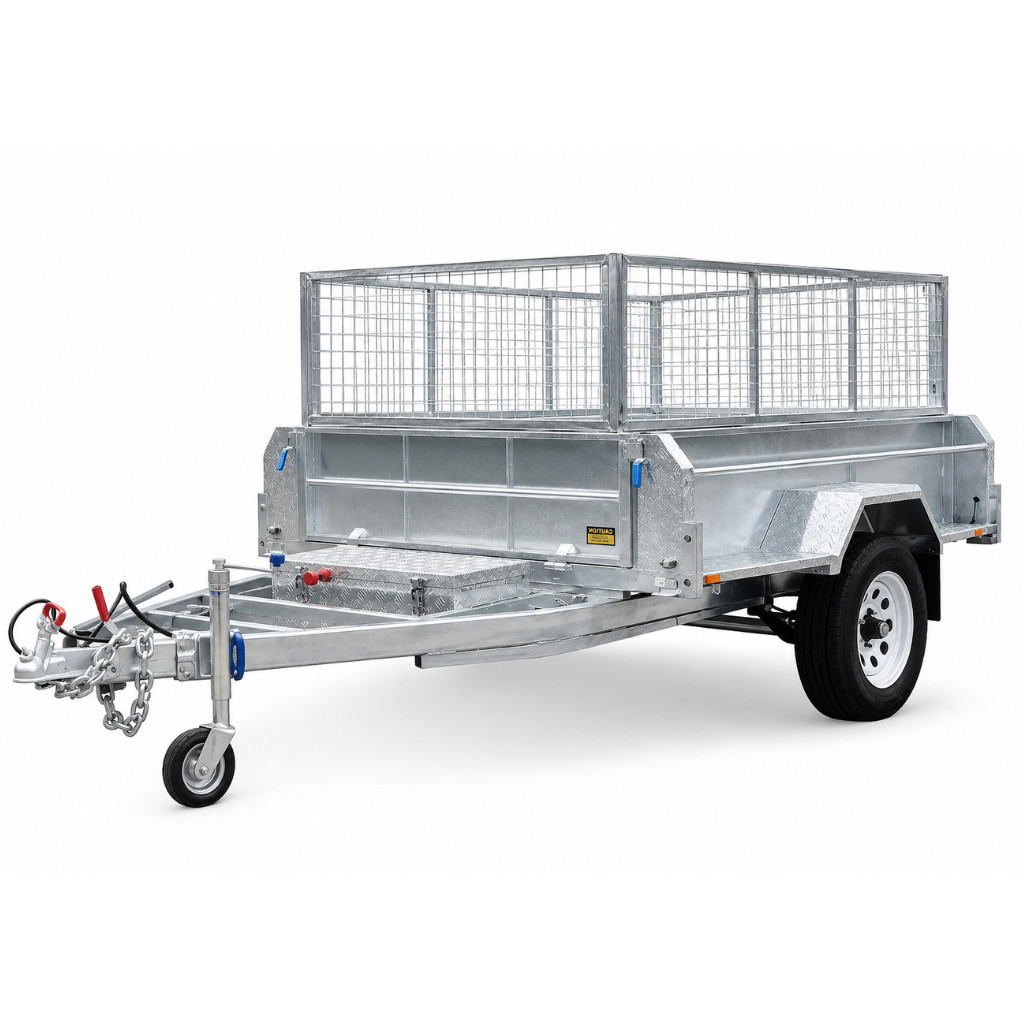

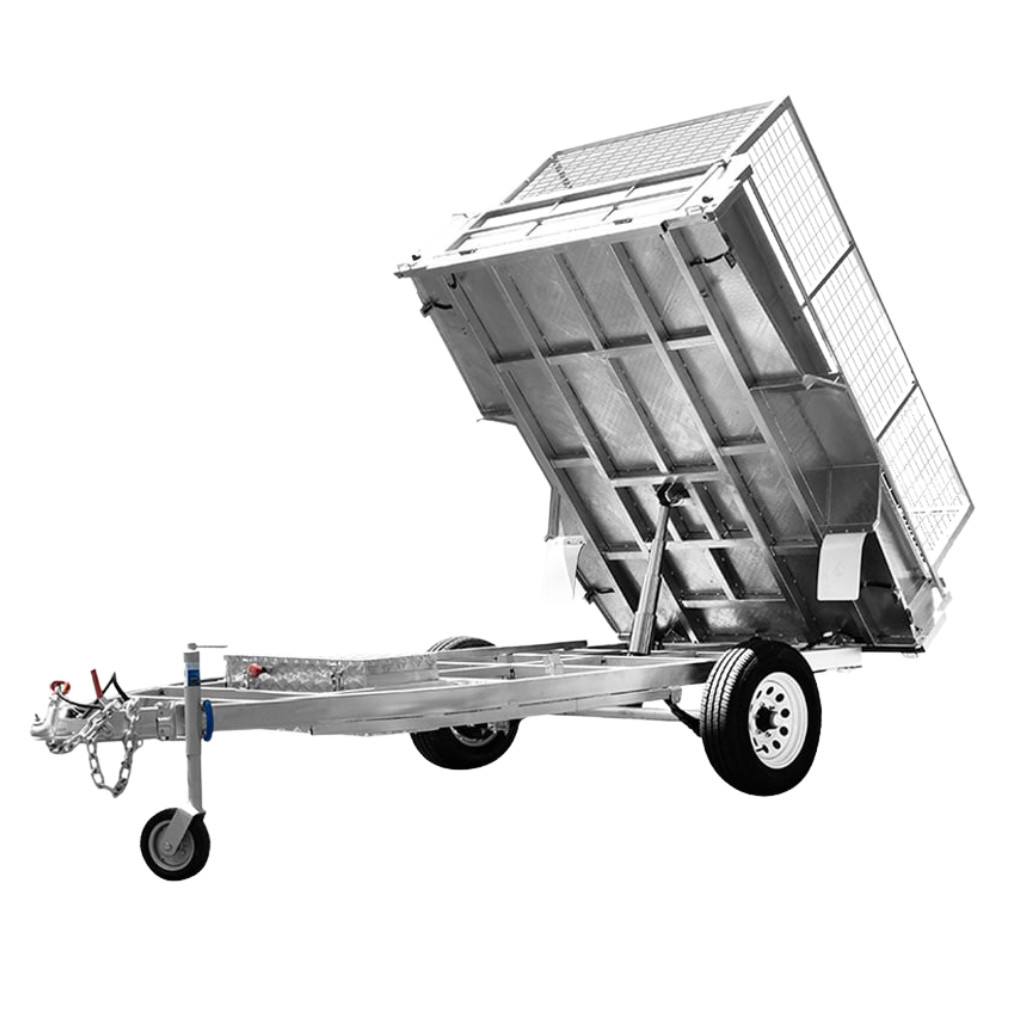

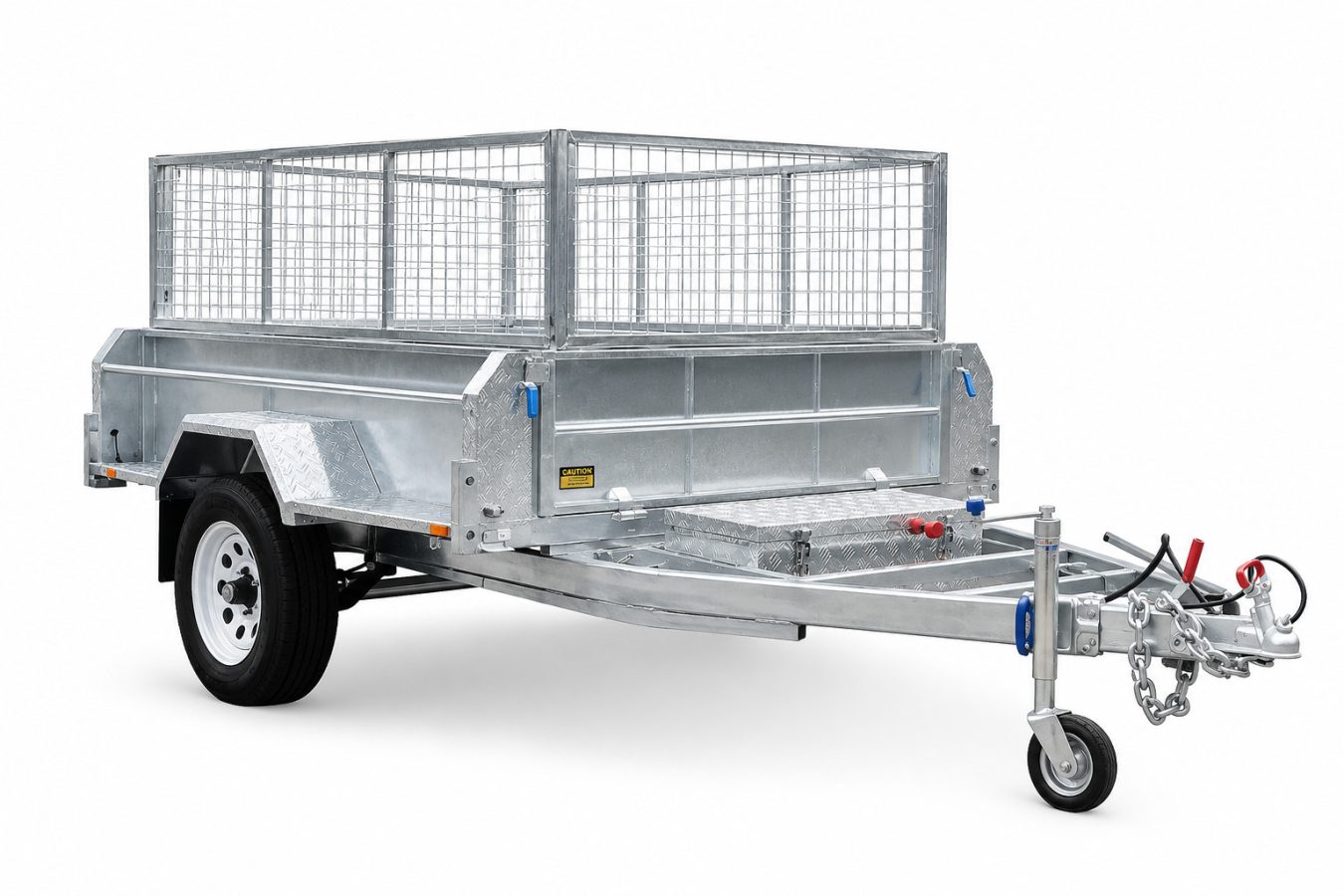

8 x 5 Heavy Duty Single Axle Hydraulic Tipper 1800kg ATM
$5,699.00
Price
$5,699
Features:
- Hydraulic tipping system for quick and easy unloading
- 600 mm removable galvanised cage
- Front and rear drop-down gates
- Lockable aluminium toolbox protects the hydraulic system
- Tie-down rails for securing loads
- Heavy-duty swing-up jockey wheel
- Manual parking brake
- LED tail lights
- ADR compliant, CTA certified and ROVER accredited
Specifications:
- Trailer Size: 8 x 5 ft
- ATM: 1800 kg
- Side Height: 450 mm
- Cage Height: 600 mm
- Floor, Gates, Sides & Guards: 2.5 mm galvanised checker plate
- Chassis & Drawbar: 100 mm x 50 mm x 3 mm RHS
- Drawbar Length: 1700 mm
- Axle: Solid axle rated to 2000 kg
- Suspension: 9-leaf heavy-duty springs
- Brakes: 12″ electric drum brakes
- Wheels & Tyres: 15″ Sunraysia rims with light truck tyres
- Hydraulic Ram: 4-stage, 3000 kg lifting capacity
- Hydraulic System: 12V power pack with automotive battery
- Electrical Connection: Anderson plug
- Trailer Plug: Flat 7 pin
- Finish: Hot-dip galvanised
- Warranty: 24 months
Onsite Queensland Registration
- 6 Months QLD Registration with Plate Installed – $180
- 12 Months QLD Registration with Plate Installed – $290
New South Wales Registration assistance also available – Please ask our staff
Optional Extras

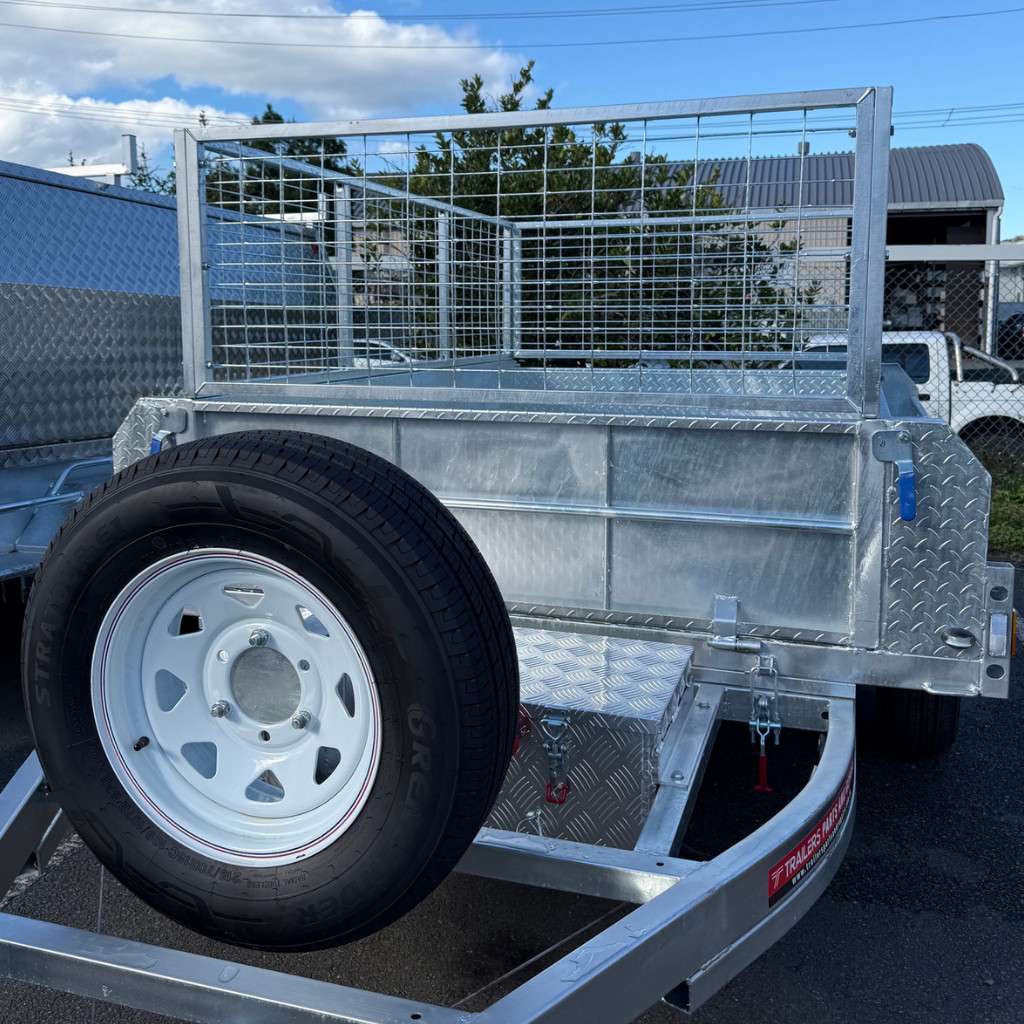

- 15″ Spare Wheel 6 Stud Land Cruiser 215/70R15 Single Hyd Tip – $160
- 5ft Ladder Racks – $340
- Upgrade to 900mm cage Hydraulic Tipper – $100
- Canvas Cover suit 8×5 600 cage – $540
- Canvas Cover suit 8×5 900 cage – $590
- Loading Ramp Aluminium 2m Loading Ramp Rated at 1500kg – Pair $600
- Coupling Lock with Padlock – $35
